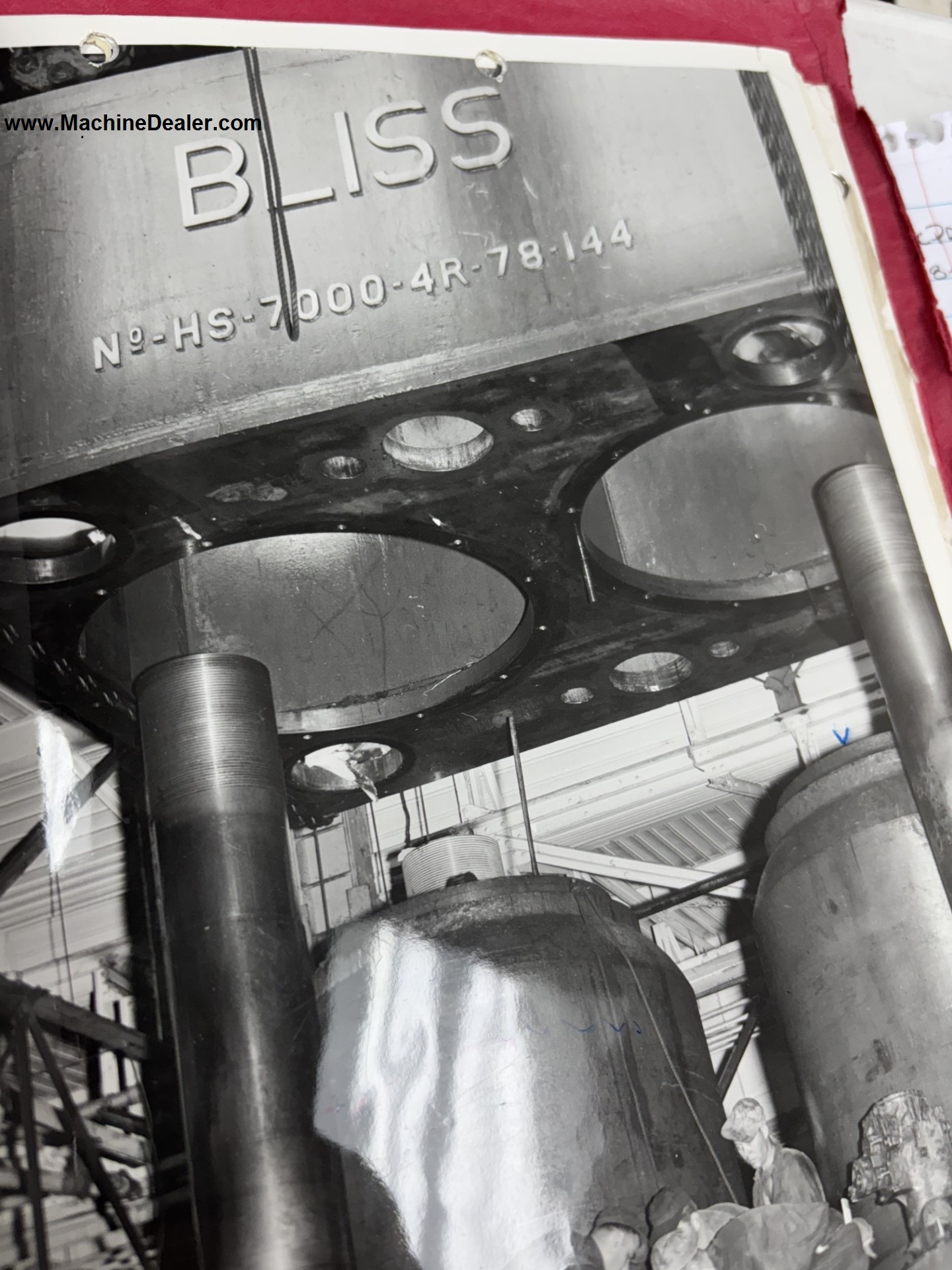

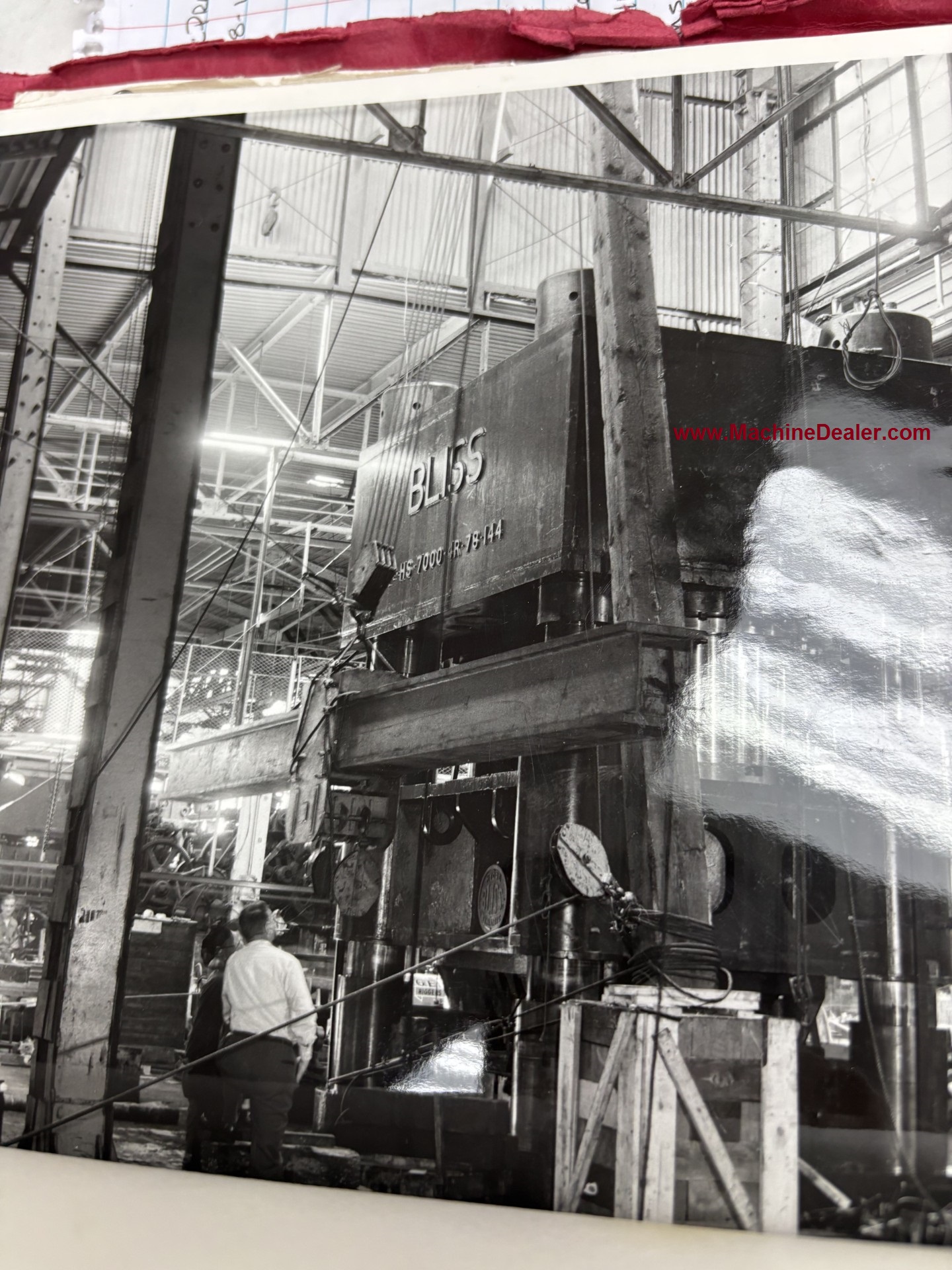

ONE PREOWNED BLISS 7000 TON VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS MODEL HS-7000-4R-48-144 AGE 1954
ONE PREOWNED BLISS 7000 TON VERTICAL HYDRAULIC DOWN ACTING FOUR POST GUIDED RAM PRESS MODEL HS-7000-4R-48-144
AGE 1954
SPECIFICATIONS:
Capacity of Ram ………………………………………………………………. 7000 Tons
Stroke of Ram…………………………………………………………………… 30”
Ram Cylinders Diameter (2)…………………………………………………. 42”
Shut Height (Over Bolster)…………………………………………………… 13”
Daylight (Over Bolster)……………………………………………………….. 42”
Area of Bolster Plate
R to L…………………………………………………………………………. 144”
F to B…………………………………………………………………………. 48”
Thickness……………………………………………………………………. 24”
Area of Bed and Ram
R to L…………………………………………………………………………. 144”
F to B…………………………………………………………………………. .48”
Distance Between Posts
R to L…………………………………………………………………………. 120”
F to B…………………………………………………………………………. .80”
Floor to Top of Bolster………………………………………………………… .36”
Speeds (Approximate)
Fast Advance……………………………………………………………….. 238 IPM
Pressing……………………………………………………………………… 17.5 IPM
Return………………………………………………………………………… 238 IPM
Oil Reservoir (Approximate)…………………………………………………. 2250 Gal
Motor-Main (2)………………………………………………………………….. 200 HP
Voltage……………………………………………………………………………. 480 Volts
Approx Weight ……………………………………………………………….. 995,155 lbs
Approx Overall Dimensions
R to L…………………………………………………………………………. 260”
F to B…………………………………………………………………………. 144”
Above Floor…………………………………………………………………. 406”
WEIGHTS:

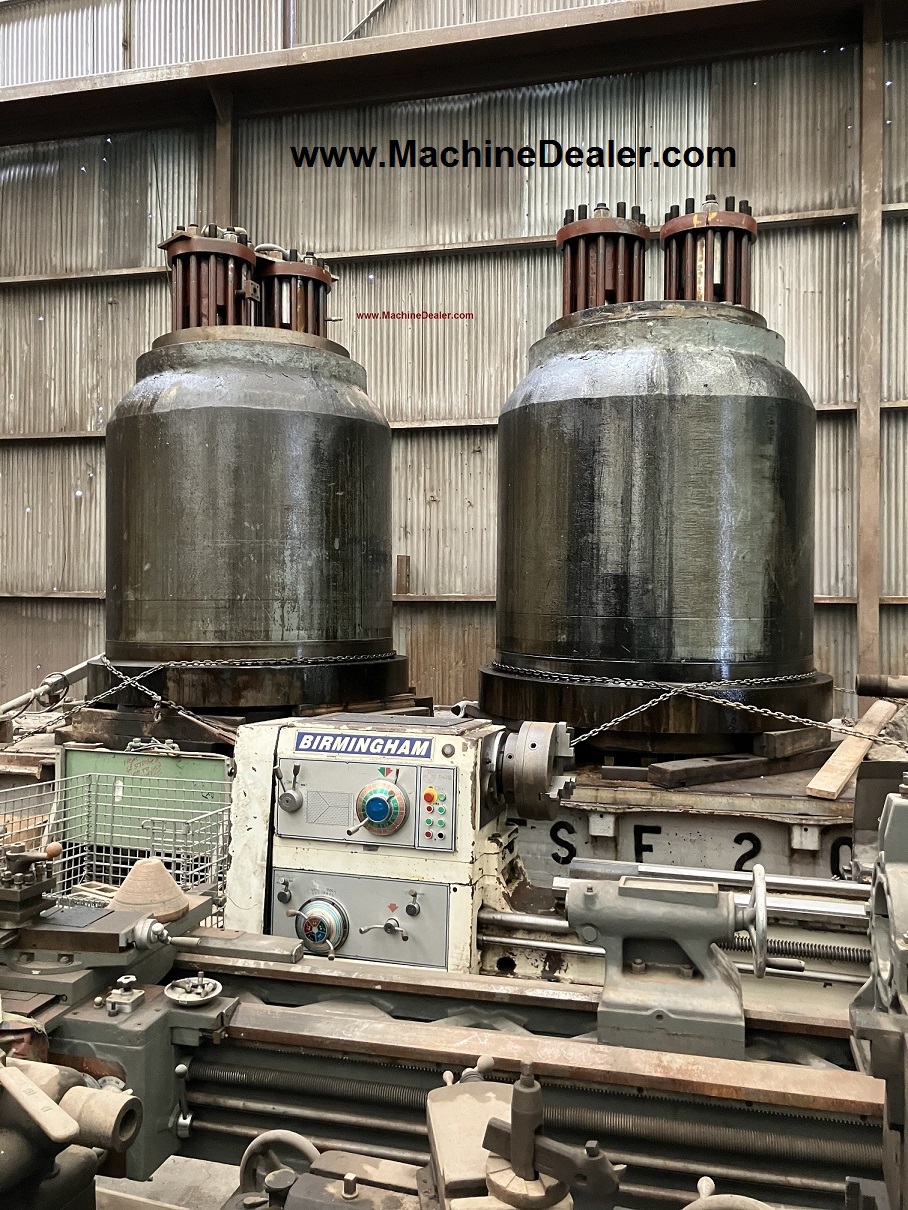

Cylinders 121,000 lbs.
Bed 166,000 lbs
Crown 175,000 lbs
Tie rods 177,500 lbs
Bolster & tables 68,000 lbs
Misc. pumps, motors, piping and valves
EQUIPPED WITH:
Press furnished with Oilgear pumps and equipment
Press complete with gauges and electrical controls
Documentation for repairs and maintenance

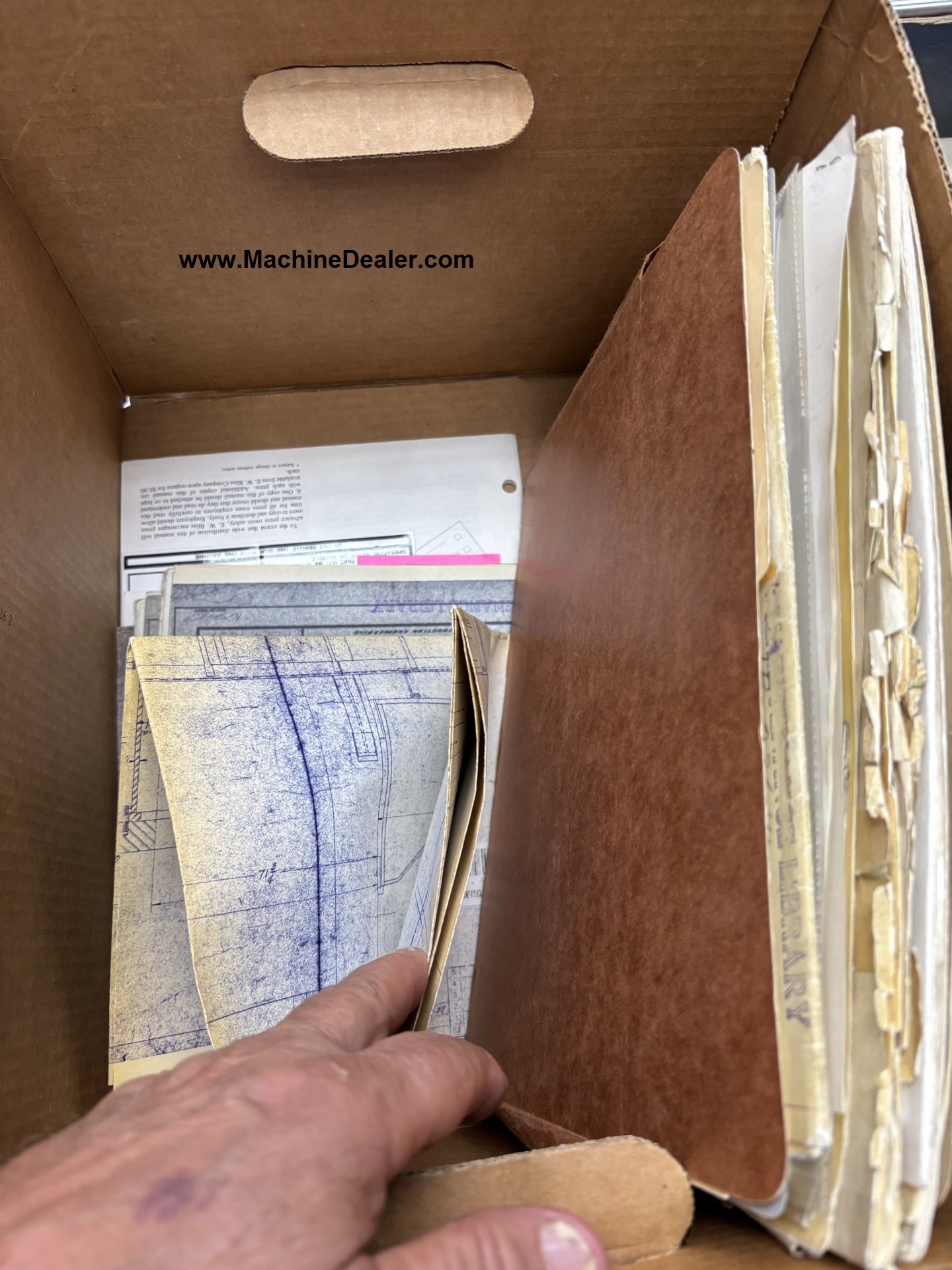

Original blueprints of mechanical, electrical and hydraulics
CONDITION: Was in good operating condition when removed from service
LOCATION: USA- Disassembled and in storage.
PRICE……………………….AS IS/WHERE IS…………..……$ON REQUEST
Stk#3053CSH
